Regufoam Vibration

Regufoam 990 plus

1721

10000025763

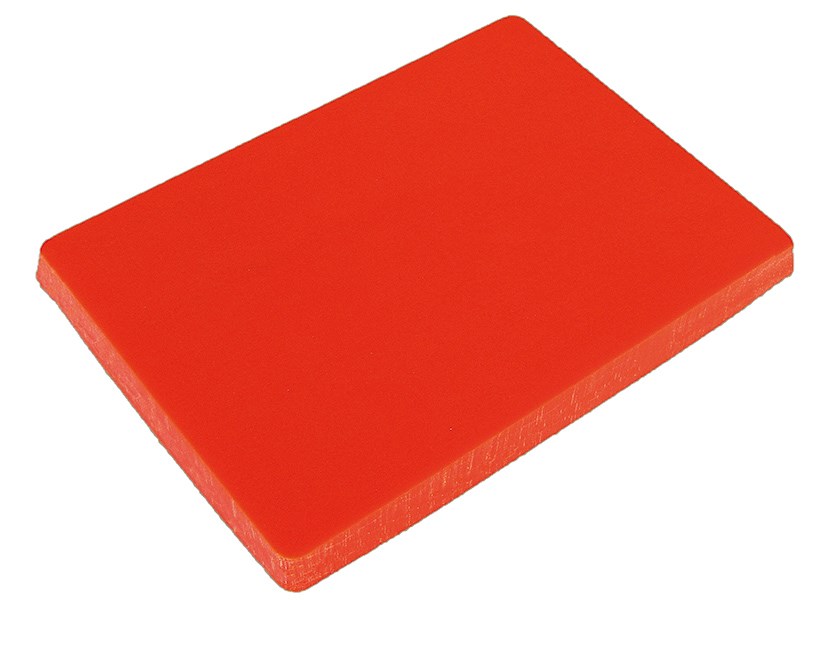

Regufoam is a waterproof, rot-proof and mixed cellular polyurethane foam produced in twelve different strength levels. These various degrees of hardness are distinguished by colour. At the standard thicknesses of 12.5 and 25 mm a wide range of bearing frequencies can be achieved up to 8 Hertz.

Advantages:
  • Fast delivery
  • Time and cost savings on the construction site
  • Optimised & cut to your specifications
  • High degree of elasticity and long service life
  • Area of static application from 0.011 to 2.50 N/mm², dynamic application area up to 3.5 N/mm²
  • Minimal amplitude dependence
  • Proven long-term behaviour and excellent durability
 Pin Unpin No purchase possible
 Technical specifications
 thickness 12,5 mm
 strip length 1,5 lfm
 static modulus of elasticity 20,0 bis 78,0 N/mm² based on EN 826
 dynamic modulus of elasticity 41,0 bis 160,0 N/mm² based on DIN 53513
 tensile strenght 6,9 N/mm² Anlehnung an DIN EN ISO 1798
 reaction to fire B2
 E		 DIN 4102
 DIN EN 13501
 compression hardness 3.640 kPa based on DIN EN ISO 3386-2
Zuschnitt:
Die gewünschte Breite (ab 6 cm) wird nach Vorgabe konfektioniert.
Winkeligkeit der Streifenkanten toleriert ± 3 mm (bei 12,5 mm Plattenthickness)
