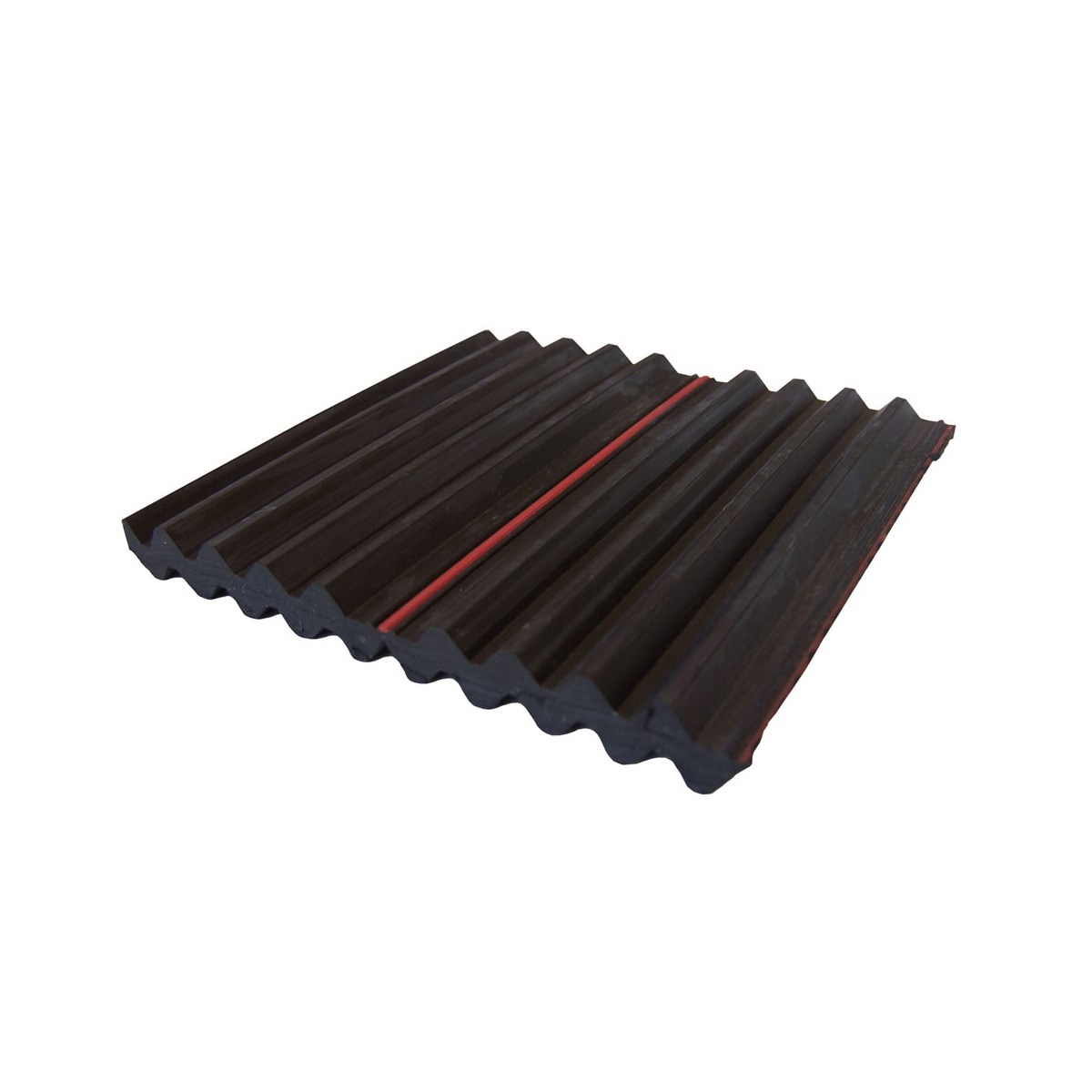

BI-Trapez Bearing 15mm
1724
10000035230
Bi-trapezoidal bearings isolate structure-borne noise and vibrations to a high degree. They consist of quality-controlled elastomer based on the synthetic rubber ethylene-propylene-diene copolymer (EPDM).
Advantages:
- Easy editing
- Allows the absorption of high loads
Dimensioning for storage class 2 according to DIN 4141 part 3:
Permissible mean compressive stress perm. Σm: 7 N / mm²
Existing bearing deflection with permissible σ existing Δt: 7 mm
Permissible horizontal shear deformation perm. U: 5,5 mm
Optimal stat. Load range 5 - 7 [N / mm²]
10 m with 3 predetermined breaking points
