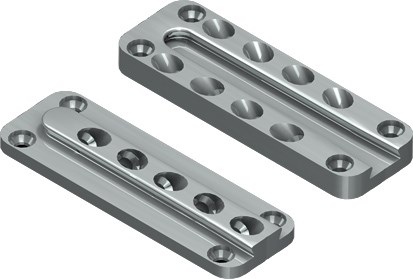

SHERPA XS 15

item number 1102

The wide range of products facilitates the creation of a tailor-made, secure and efficient solution for any task. The XS - M series, for example, is ideally suited for winter gardens, carports and smaller wooden structures

Dimensions: 30 x 90 mm
Thickness: 12 mm

Minimum cross-section:
Main beam: 50 x 120 mm
Secondary beam: 50 x 120 mm
(minimum cross-sections apply if the upper edge of the main and secondary beams are mounted flush)

Screws: 21 units 4,5 x 50 Item# 1000023938
Locking screw: 3 x 12 mm, Item# 10000025303
(locking screw not included)

characteristic carrying capability: ca. 15 kN
(For static calculations, the characteristic values ​​of the currently valid approval must be taken into account.)

The benefits are:

• Safety provided by Certification and monitoring
• Simple and fast calculation
• Highdegree of prefabrication
• Quick installation
